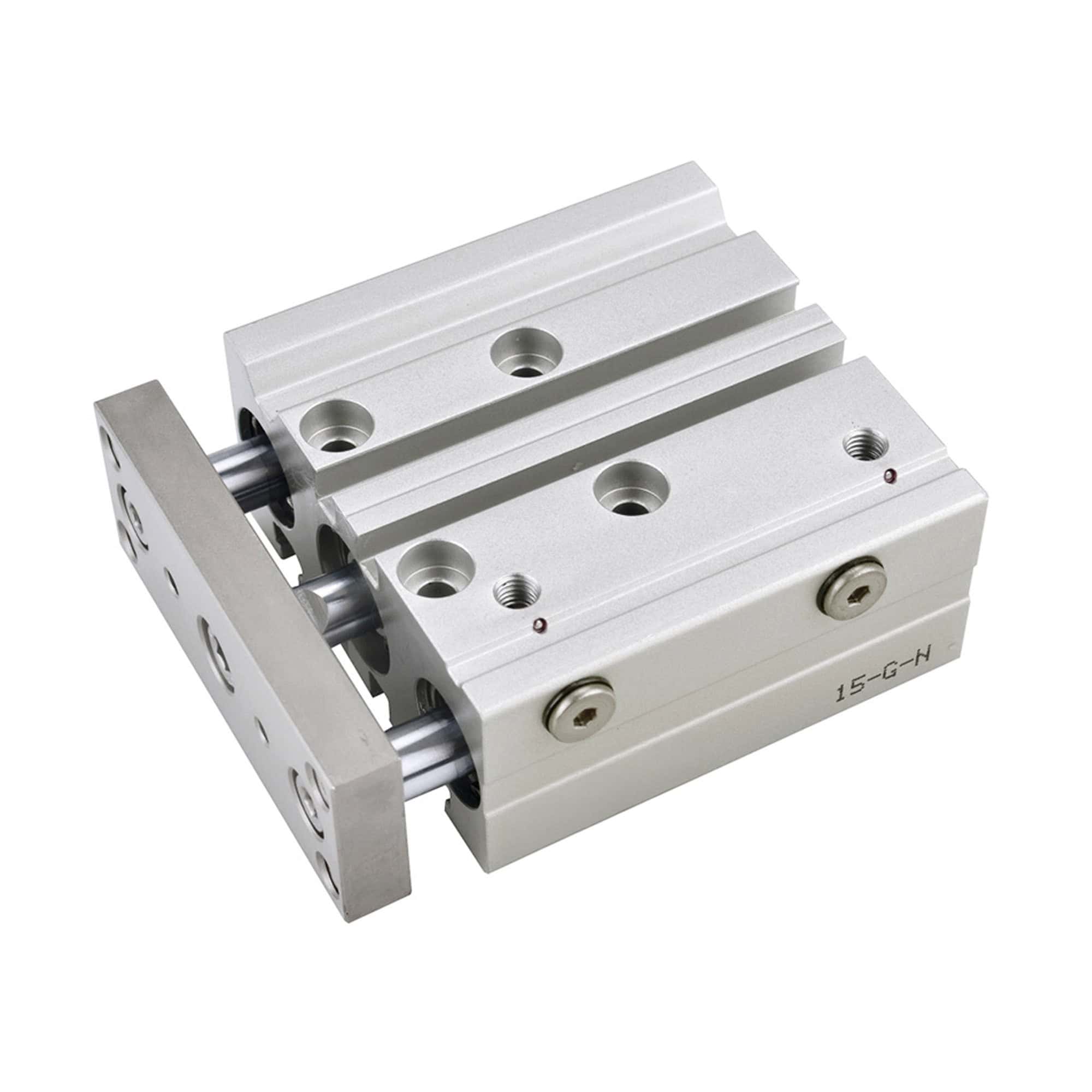

Guide cylinder TC Series

Double acting cylinder for transverse forces or non-rotational construction
Compact design, combined cylinder and two rotary guides
Guides are equipped with either slide or ball bearing
Pressure range: 1.5…10 bar (0.15…1.0 MPa)
Temperature range: –20…+70 ºC
Working fluid: Filtered (40 µm) compressed air or neutral gases, with or without spray lubrication
