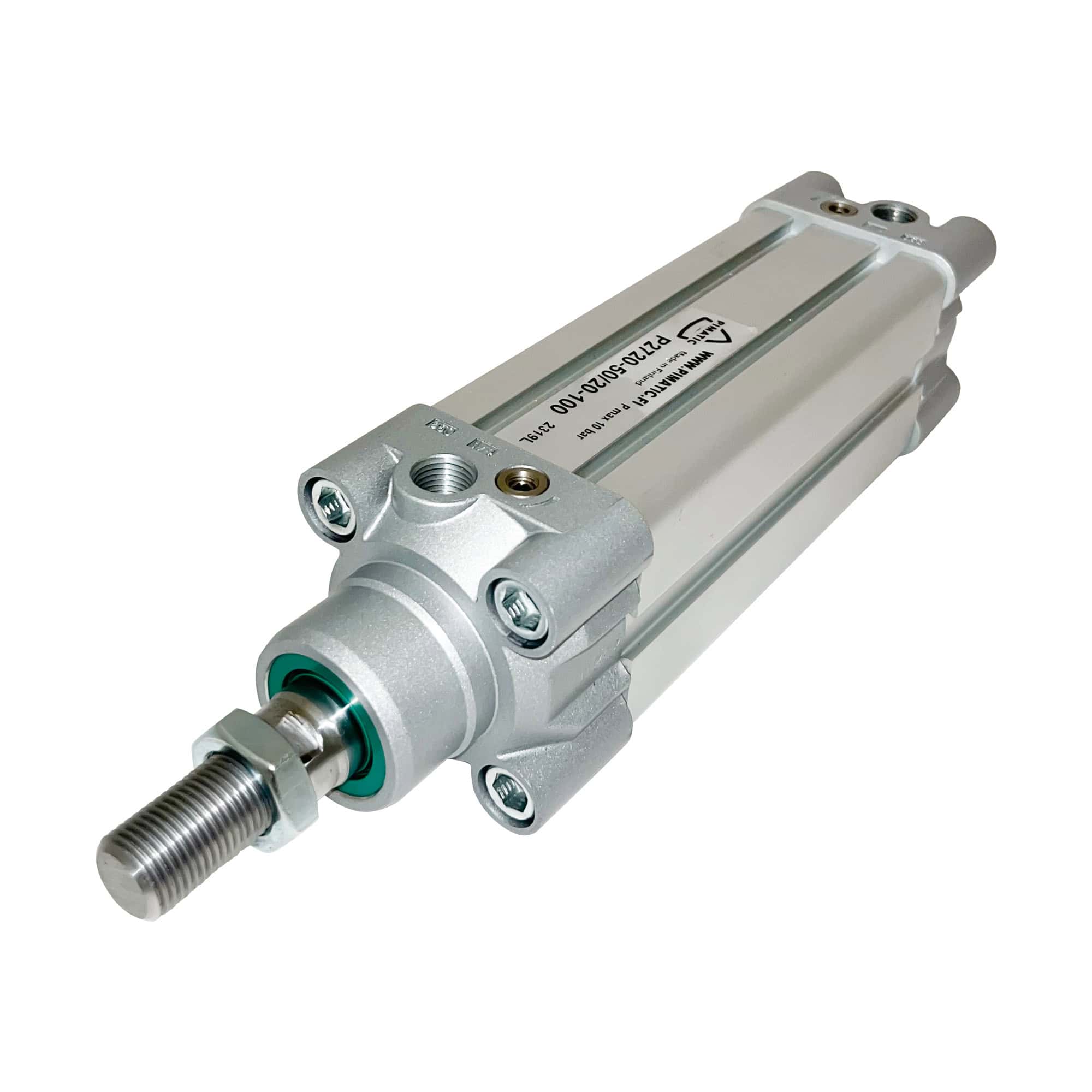

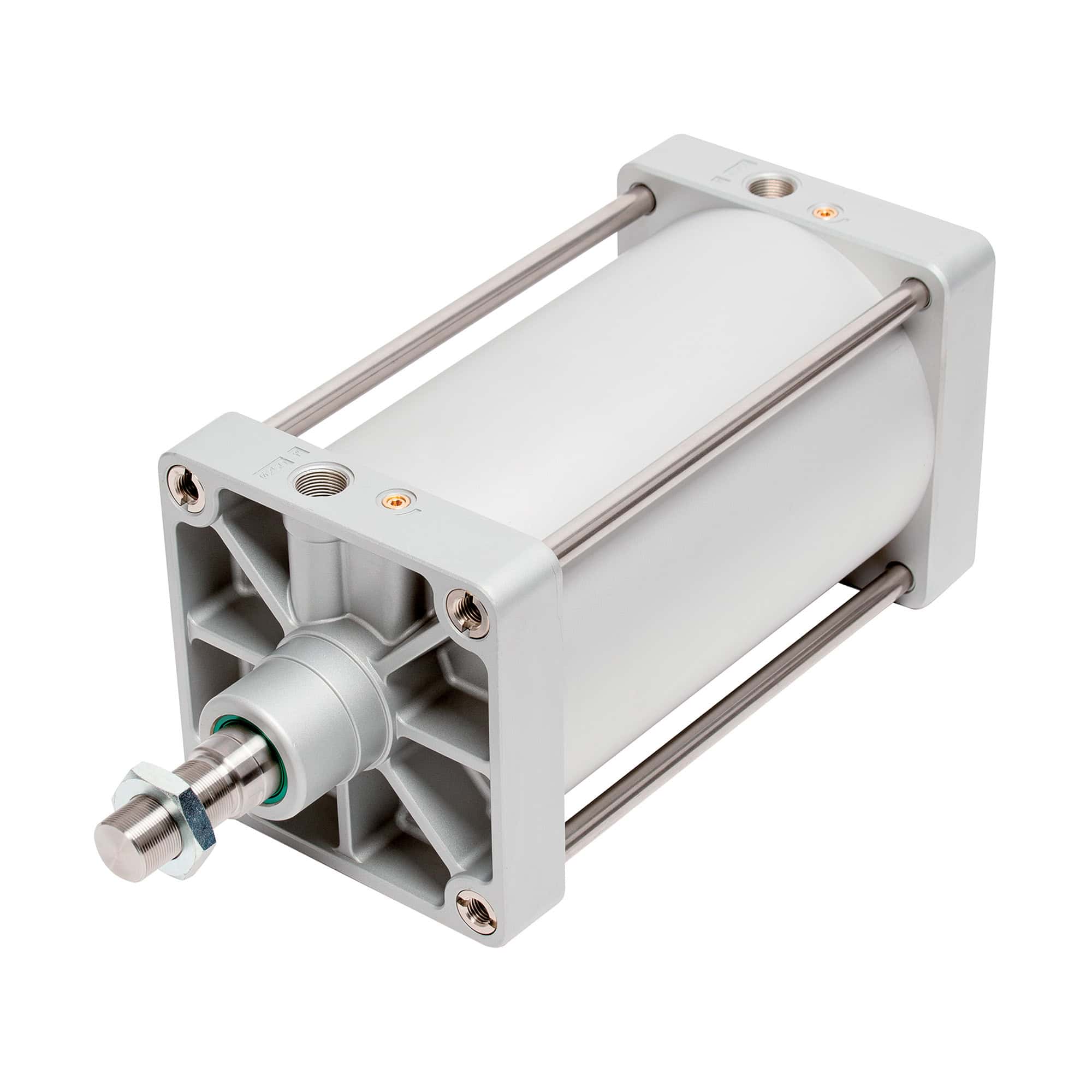

ISO15552 cylinders
P2720 series
- Double acting and spring return version
- Magnetic piston as standard feature
- ISO15552 construction
- Diecast aluminium covers
- Hard anodized profile tube or round tube with tie rod construction available
- Chromed piston rod
- Pressure range 0…10 bar
- Temperature range ‐35…+80ºC with standard seals (PU) and 0…150ºC with high temperature seals. Metal piston rod scrapper upon request. Temperature -40ºC)
- Media: Pressurized air ( Filtered 40µm) or inert gases, lubricated or dry
- Diameter: 32, 40, 50, 63, 80, 100, 125, 160, 200, 250 and 320mm
- Stroke lengths of spring return cylinders 25,50,80,100,125 and 160mm (profiled tube only available)
