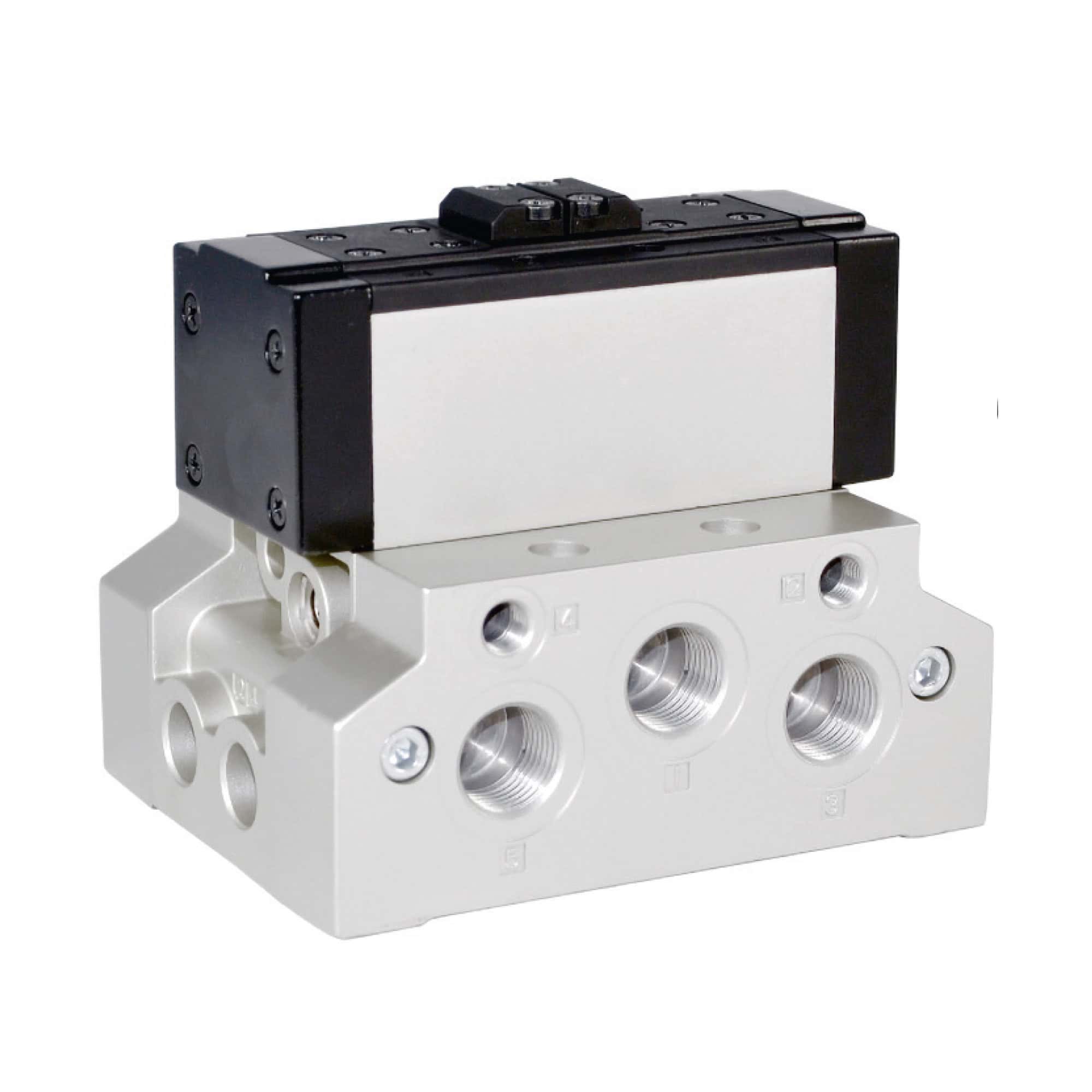

EAV series
- ISO5599/1 standard 5-way gate valve to be mounted on a sub-base
- Two or three-position for double acting cylinder control or similar applications
- Materials:
- 200/300/400 series; painted aluminium frame, painted zinc-cast ends
- 600 series; hard-anodised aluminium frame, anodised zinc-cast ends
- Special gaskets: HNBR
- high flow rate and long life cycle
- Temperature range: –20…+70 ºC
- Lubrication Additional lubrication unnecessary
- Working fluid: Dry or spray-lubricated air / neutral gases, filtration 40 µ
- Electrical connection: Led connector DIN B Pg07, cable diameter 6 to 8 mm
- Protection class IP65
- Control voltages: 12/24VDC 24/110/220VAC
- Duty cycle 100% ED
- Voltage tolerance: DC ±10%, AC ±15%
- Power requirement: DC: 3W, AC110/220:4.5VA, AC12:5VA
- Manual control on electrically controlled models
