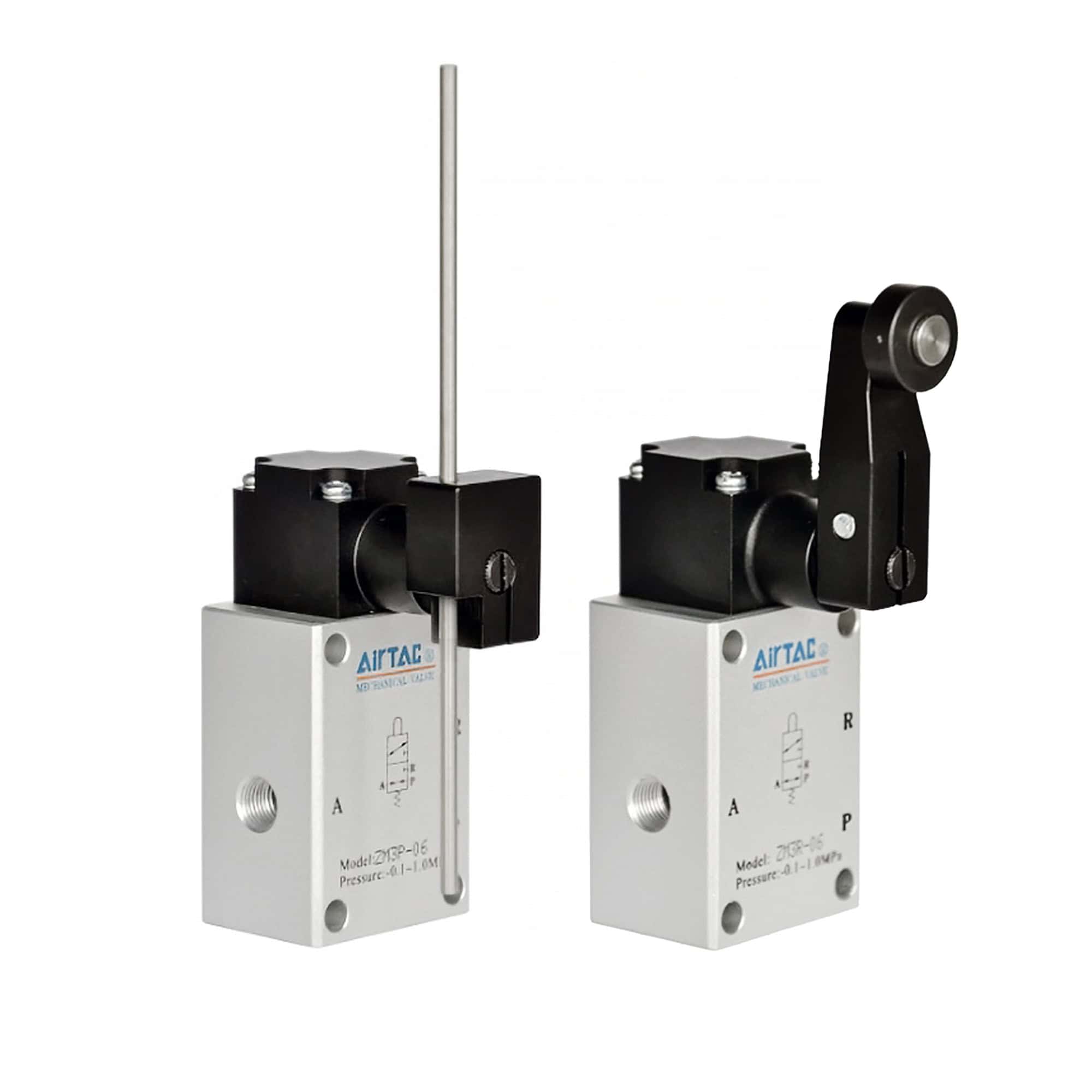

ZM3 series
- Mechanically controlled 3/2 in-line valve
- Available for NO or NC operation
- Anodised aluminium frame
- Steering head rotatable in 90 ° increments
- Steering lever/roller can be changed to operate in both or only one direction
- Thread size: G1/8
- Nominal flow: 5.3 dm3/s
- Pressure range: –1–10 bar (–0.1–1.0 MPa)
- Temperature range: –20…+70 °C
- Working fluid: Dry or spray-lubricated air and neutral gases, filtration 40 µm
- Datalehti: ZM3-sarja (PDF)
- Datasheet: ZM3 Series (PDF)
