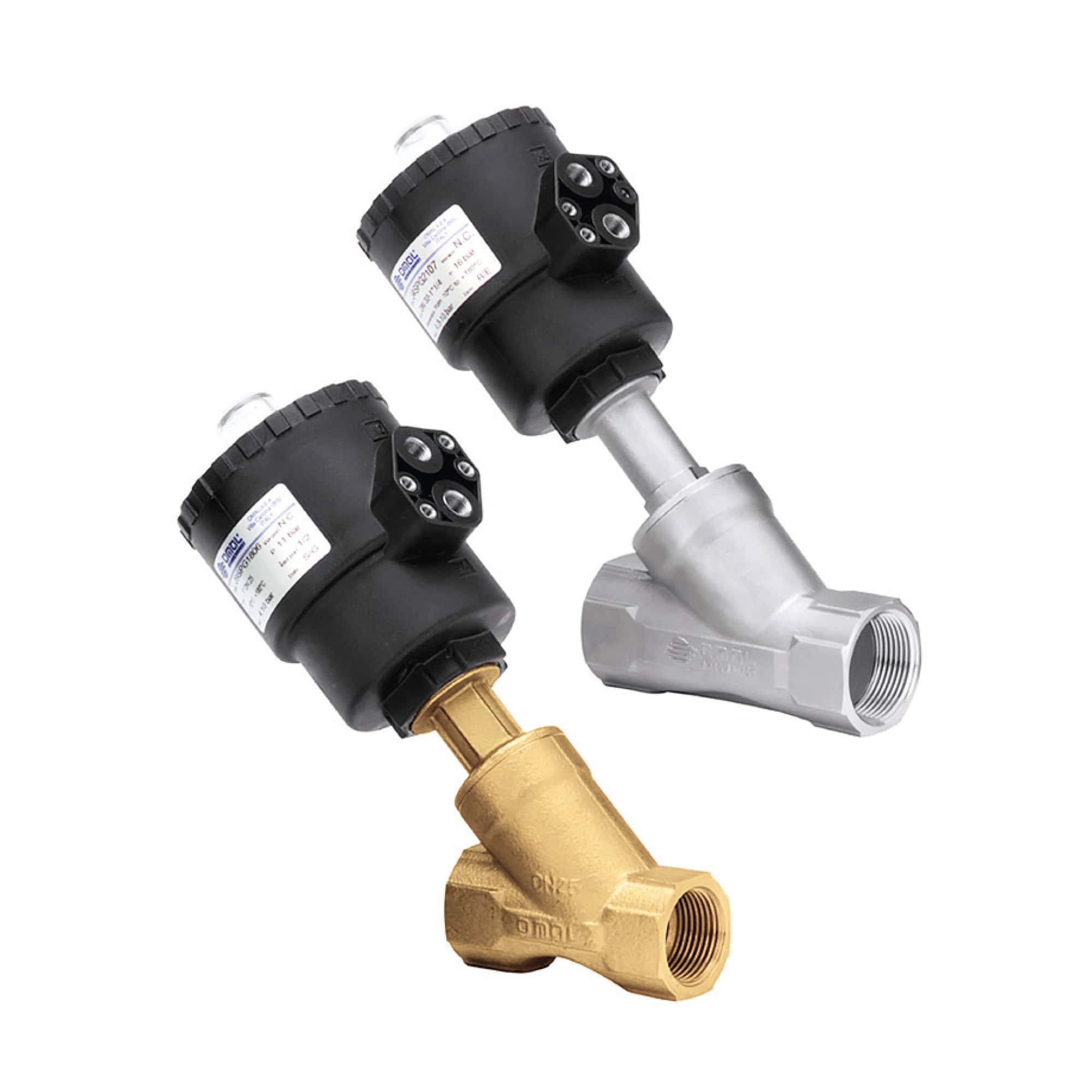

Angle seat valves
- Pneumatically controlled 2/2 valve

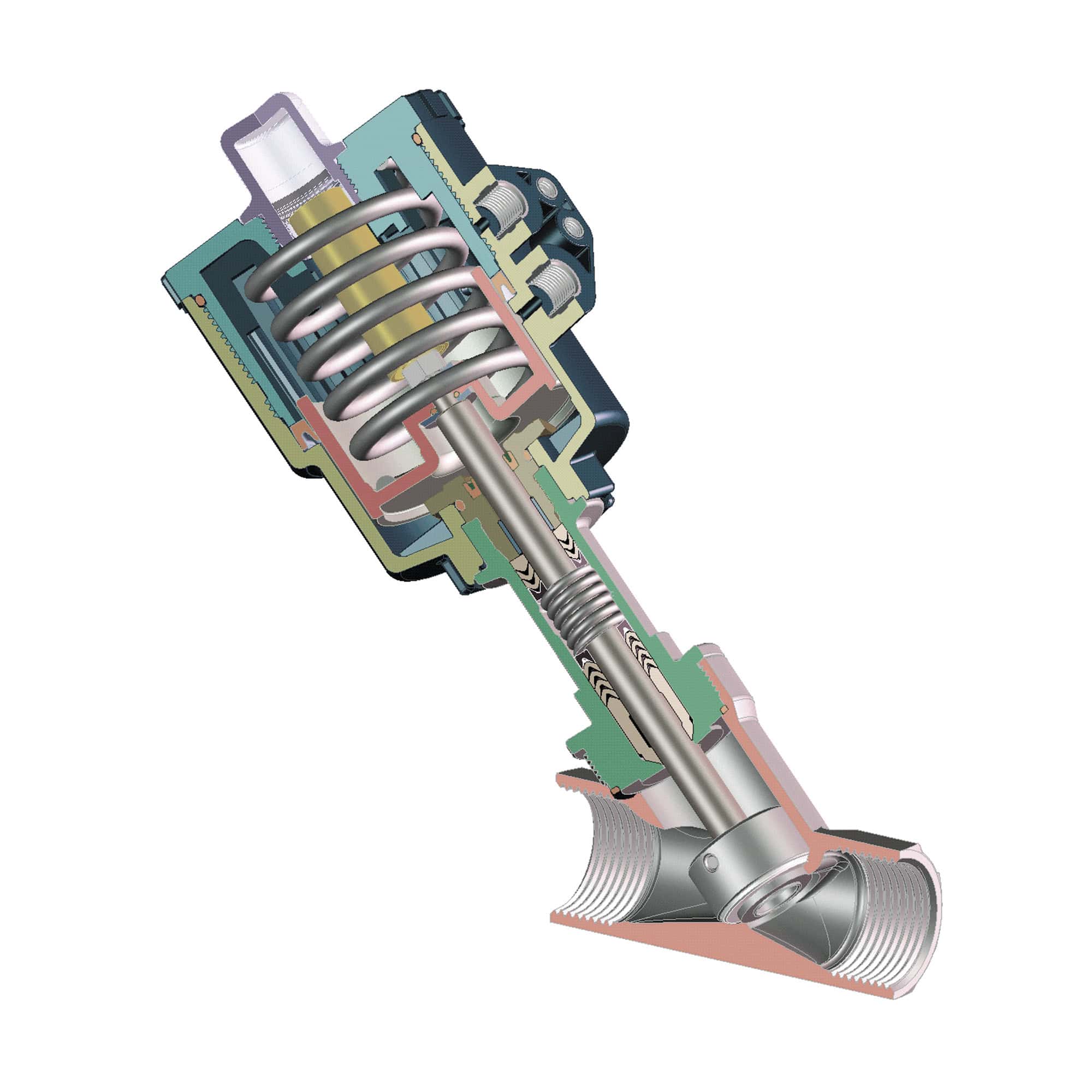

- A pneumatic cylinder which moves PTFE gasket to and from sealing plate
- Coating machined to bronze or AISI 316 frame
- Frame design for good flow values and operation with shock absorbers activated
- Self-tightening gasket set guarantees a long lifecycle
- Actuator can be rotated 360 degrees
- An optical position indicator and NAMUR connection are standard on the actuator
- Optional actuator position sensors or limiter
- Pressure range: 0…16 bar (0…1.6 MPa), with steam 0…10 bar (Dependent on valve size and design)
- Temperature range: –10…+180 ºC
- Ambient temperature range: –10…+60 ºC
- Working fluid: Dry or spray-lubricated air or neutral gases
