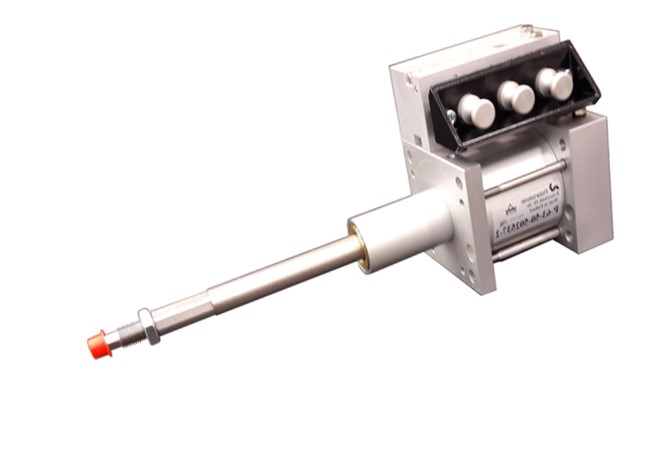

Case study: An actuator for lowering upper blades of a winder with integrated manual override valves
Benefits:
A cylinder with integrated valve block to secure operating sequence of two cylinders without external limit switches or position sensors
Prevents mechanical contact between upper and lower blade
Left- or right-hand assembly
Compact size
Engineered to fit to customer’s design
