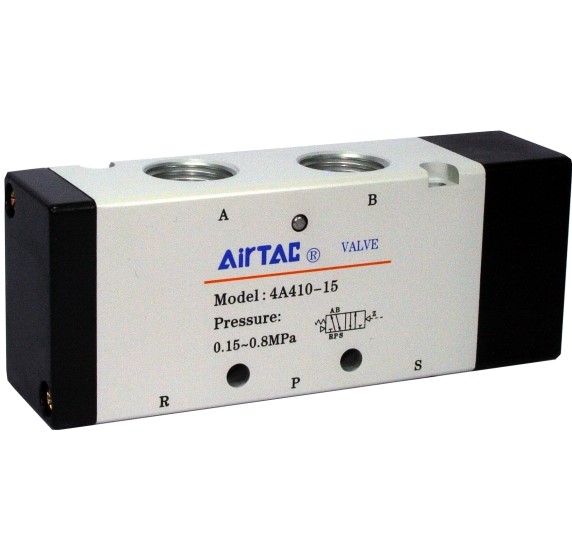

G1/2 Air controlled valve 5/2- and 5/3 – valves – 4A series

4A400

Benefits:



  • Port size G1/2
  • Robust body made of aluminium alloy
  • Inline or manifold mounting

4A400 series 3D files Download
4A400 series brochure pdf Download


[canvasio3D width=”700″ height=”350″ border=”0″ borderCol=”#c8c8c8″ loadingText=”Loading 3D model ” dropShadow=”0″ backCol=”#FFFFFF” backImg=”…” mouse=”on” rollMode=”MouseOver” rollSpeedV=”0″ rollSpeedH=”0″ objPath=”https://www.pimatic.fi/wp-content/uploads/Air-valve-5_2-way-4A-series.obj” objScale=”2.5″ objColor=”#b3b3b3″ lightSet=”5″ reflection=”on” refVal=”5″ objShadow=”off” floor=”off” floorHeight=”32″ lightRotate=”off” vector=”off” mousewheel=”on” Help=”off”]Your browser does not support this 3d model [/canvasio3D]
3d model of the product

Download product card (pdf)

Technical details

Fluid

Air (to be filtered by 40 μm filter element)

Port size

G1/2

Orifice size

5/2  valves: 50,0 mm2 (Cv=2.79)

5/3 valves: 30,0 mm2 (Cv=1.68)

Valve type

4A410-15, 4A420-15: 5 port 2 position

4A430C-15, 4A430E-15 & 4A430P-15: 5 port 3 position

Operating pressure

1,5… 8,0 bar

Temperature range

-20-+70°C
