Doctor blade oscillators

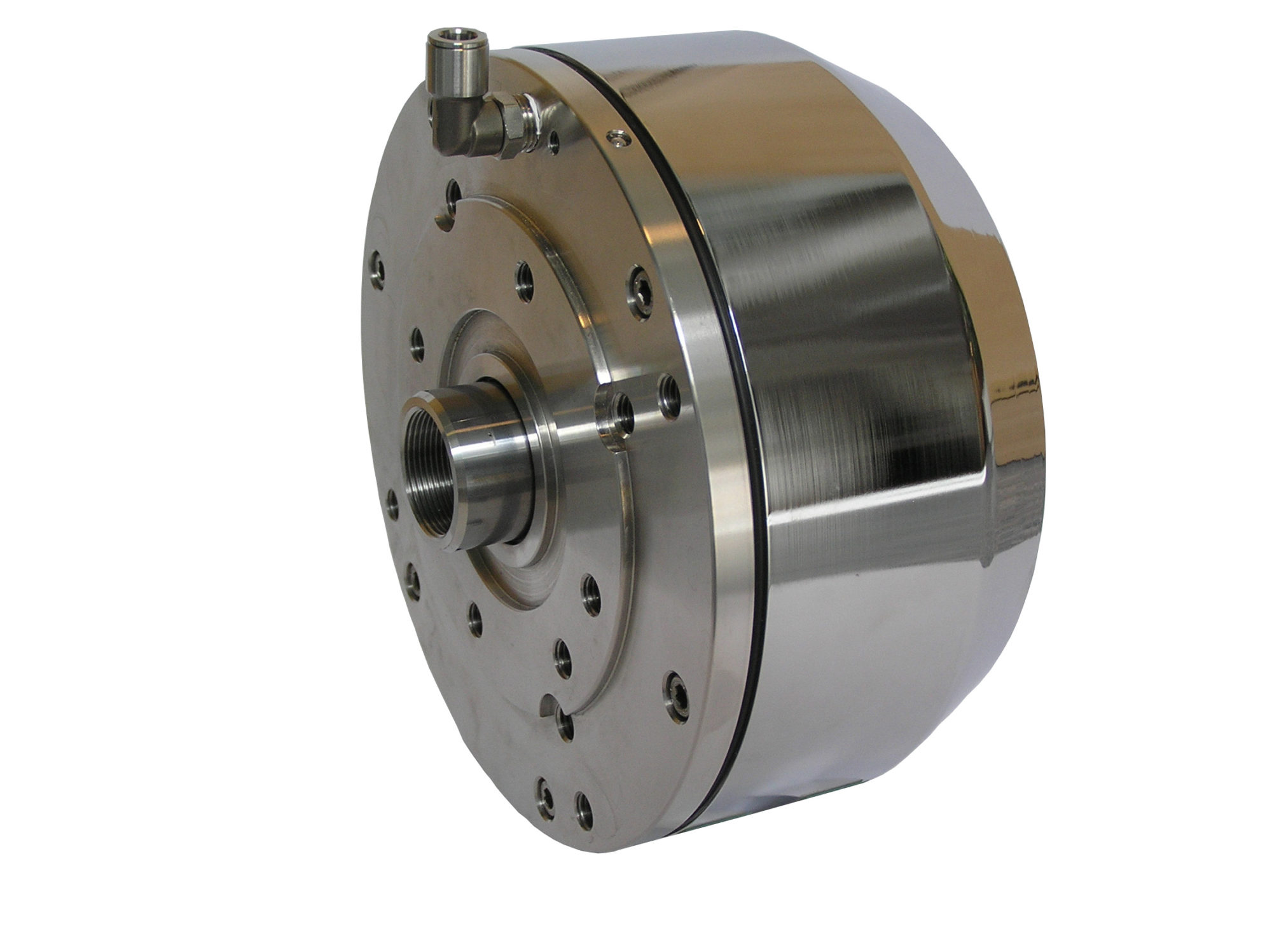

Compact pneumatic doctor blade oscillator for dry and wet end applications

Benefits

  • Same product for both dry and wet end applications
  • Maintenance free life-time expectancy over 5 years
  • External parts in contact with ambient made of AISI316
  • Effective air cushioning system eliminates vibration and
    dwell of the doctor blade
  • Compact size and light weight
  • No lubrication needed
  • Adjustable speed and stroke length
  • Flexible mounting options

Compact Pneumatic Doctor Blade Oscillator brochure Download

[canvasio3D width=”700″ height=”350″ border=”0″ borderCol=”#c8c8c8″ loadingText=”Loading 3D model ” dropShadow=”0″ backCol=”#FFFFFF” backImg=”…” mouse=”on” rollMode=”MouseOver” rollSpeedV=”0″ rollSpeedH=”0″ objPath=”https://www.pimatic.fi/wp-content/uploads/502118-Hydro-Pneumatic-Shower-Pipe-Oscillators-MALLI-2.obj” objScale=”2.2″ objColor=”#b3b3b3″ lightSet=”5″ reflection=”on” refVal=”5″ objShadow=”off” floor=”off” floorHeight=”32″ lightRotate=”off” vector=”off” mousewheel=”on” Help=”off”]Your browser does not support this 3d model [/canvasio3D]
3d model of the product

Download product card (pdf)

Technical details

Thrust force

11 kN & 22 kN versions at 6 bar

Pressure range

2,5-10,0 bar

Ambient temperature range

-5…+150°C

Speed range

recommended number of back-and forth strokes
3…5 strokes/min

Stroke length

Factory set 16 mm,
adjustable range 10–16 mm in steps of 2 mm
