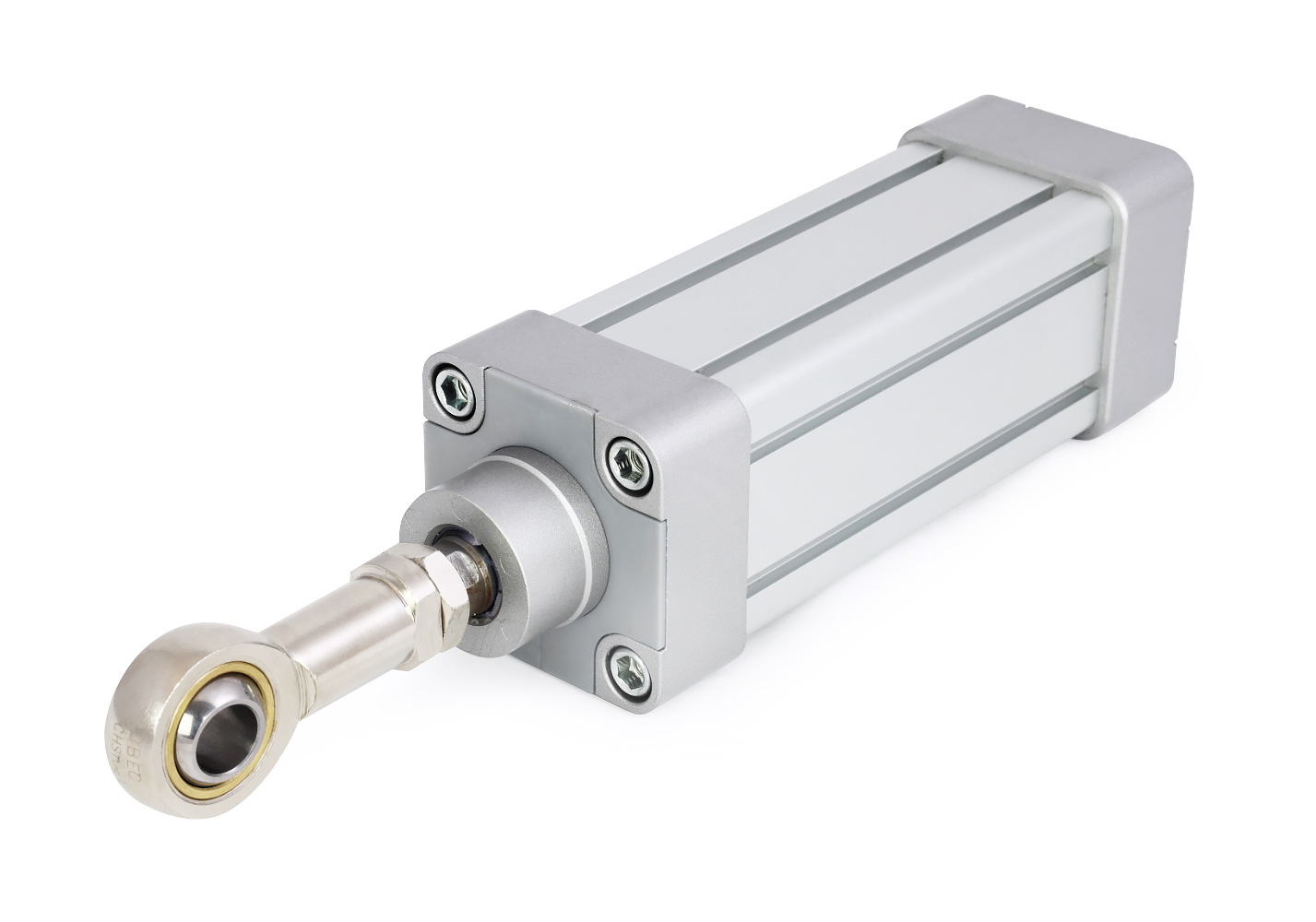

ISO 15552 / VDMA 24562 cylinders – P2520

P2520 – series

Benefits

  • Wide diameter range 32 – 320 mm
  • Two barrel constructions available:
    • All diameters round hard-anodized barrel and tie rods
    • Anodized aluminium profile barrel diameters 32 – 100 mm
  • Options:
    • Stainless steel piston rod, chrome plated
    • Corrosive resistant, steel parts made of AISI316
    • High temperature FKM seals
    • Double piston rod
    • 3- and 4- position cylinders
  • Magnetic piston standard in diameters 32-200 mm, as an option in diameters 250 and 320 mm

P2520 cylinders 3D files Download here
P2520 cylinders brochure pdf Download here

[canvasio3D width=”700″ height=”350″ border=”0″ borderCol=”#c8c8c8″ loadingText=”Loading 3D model ” dropShadow=”0″ backCol=”#FFFFFF” backImg=”…” mouse=”on” rollMode=”MouseOver” rollSpeedV=”0″ rollSpeedH=”0″ objPath=”https://www.pimatic.fi/wp-content/uploads/P2520-100-100.obj” objScale=”1.5″ objColor=”#b3b3b3″ lightSet=”5″ reflection=”on” refVal=”5″ objShadow=”off” floor=”off” floorHeight=”32″ lightRotate=”off” vector=”off” mousewheel=”on” Help=”off”]Your browser does not support this 3d model [/canvasio3D]

Download product card (pdf)

Technical details

Cylinder diameters

32… 320 mm

Pressure range

0-10,0 bar

Operating medium

Compressed air, filtered, max. 40 μm, no lubrication needed

Ambient temperature range

-20-+60 °C with standard seals, -5-+150 °C with FKM seals

Materials

Barrel and end caps – Anodized aluminium
Piston rod – Chrome plated steel or
Chrome plated stainless steel
Sealings – NBR as standard, FKM as an option
Tie rods – Diameters 32-125 stainless steel, 160–320 zinc plated steel
