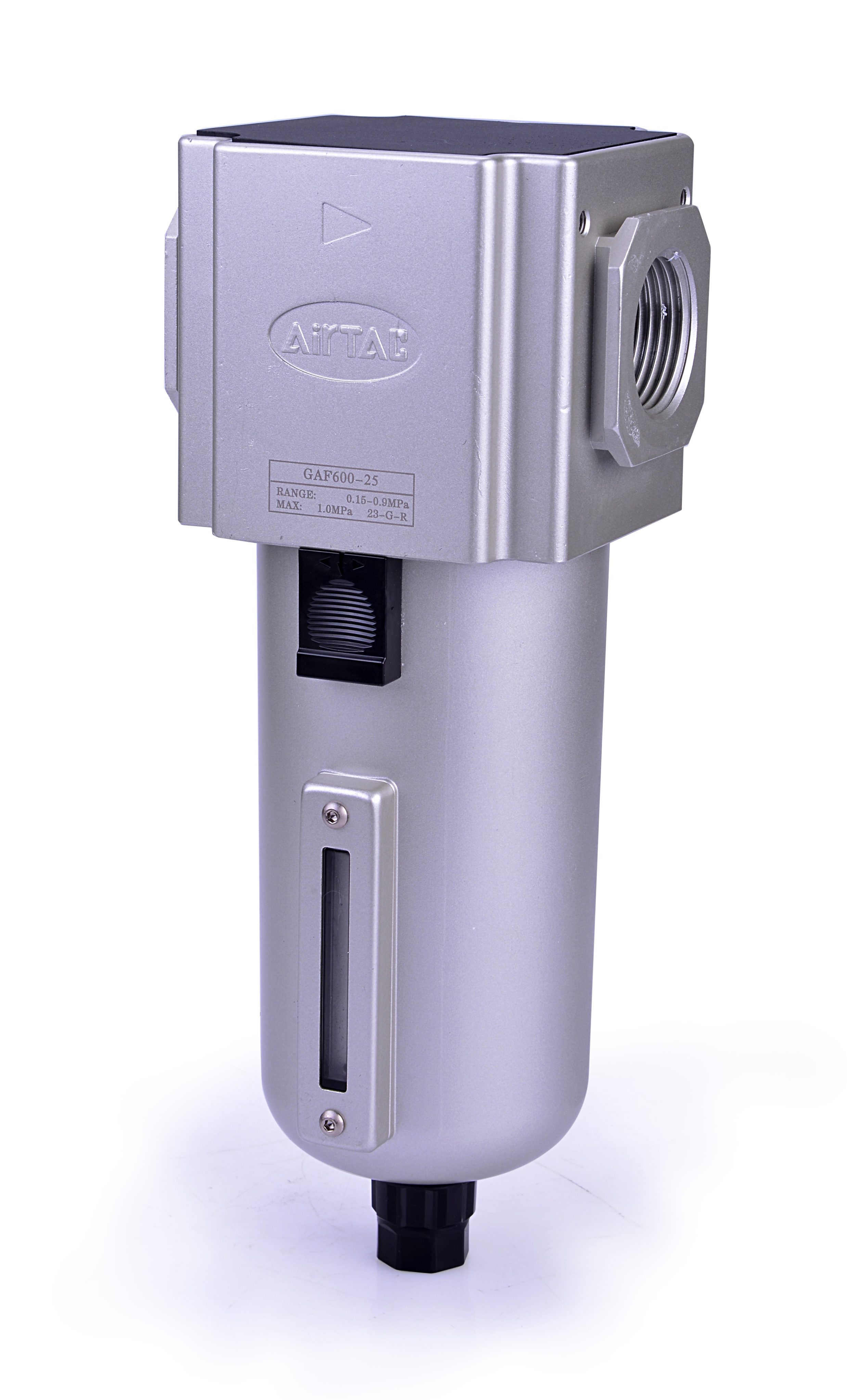

GAF filter

Product feature

Unique diversion structure spins the air flowing through to
effectively separate the liquid from the air and
reliably filter the solid grain
Low pressure loss, high efficiency in separating water
and large drain bowl capacity
Filtering grade includes 40 μm and 5 μm (optional)
Three drain types are available: semi-auto drain and automatic drain
Three material of bowl are available: PC, Nylon and Metal
The bracket can be selected for installation

Port size	GAF200-06: G1/8 GAF200-08, GAF300-08 & GAF400-08: G1/4 GAF300-10, GAF400-10: G3/8 GAF400-15: G1/2 GAF600-20: G3/4 GAF600-25: G1
Filtering grade	40 μm or 5 μm
Pressure range	1,5-10,0 bar
Material	Body – Aluminium alloy Bowl – Aluminium alloy/ PC/ Nylon Seals – NBR
