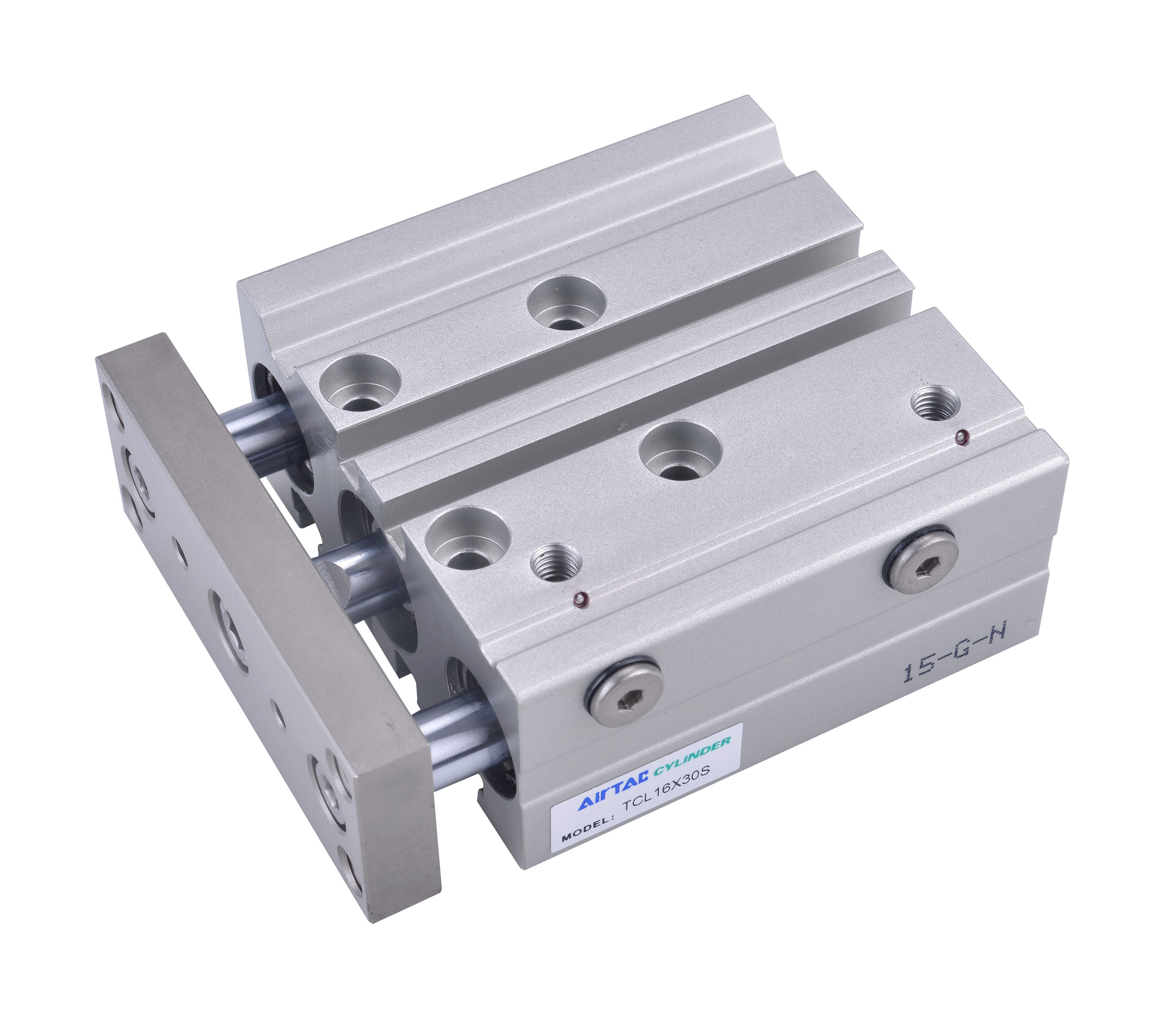

Tri-rod cylinder

Benefits:

Two alternative constructions – bronze slide bearings or steel ball linear bearing
Versatile mounting options with precise positioning holes
Connection ports on two sides
Stroke lengths 5… 250 mm depending on bore size

Bore size	⌀ 6, 10, 12, 16, 20, 25, 32, 40, 50, 63, 80 & 100 mm
Fluid	Air (to be filtered by 40 µm filter element)
Operating pressure	1,5-7 bar (⌀ 6, 10 mm) 1,5-10 bar (⌀ 16, 20, 25, 32, 40, 50, 63, 80 & 100 mm)
Temperature range	-20-+70°C
Materials	Body – Aluminium alloy Plate – Aluminium alloy Piston rod guide – Chrome plated steel
